Pandaplacer A1

Desktop pick and place machine kit under $1000

Get Started

Features

All Metal

All moving parts are made of metal to ensure high rigidity and stability. Precisely machined aluminum profiles and high precision linear rails ensure accuracy and durability

Compact Design

Highly optimized space utilization, providing up to 65 8mm feeder mounting positions in a small body size, about the size of a big 3D printer

Full Features

Dual-Head with high precision nozzles, TMC stepper drivers, vacuum sensors, easy to install cables, low-cost feeders and controllers, auto nozzle tip changing and many more

Advanced Vision

Equipped with dual camera vision, featuring both top and bottom cameras. This advanced setup ensures precise component alignment and placement accuracy, enhancing overall production efficiency and quality control

Wide Compatibility

Supports a wide range of package sizes from the small 0402 components up to large LQFP-176 packages, with a maximum component height of up to 18mm, ensuring precise placement for both small and large assemblies

OpenPnP

Designed for the OpenPnP pick and place software, powerful and highly flexible, free and open source, with great community support

Learn more

Products

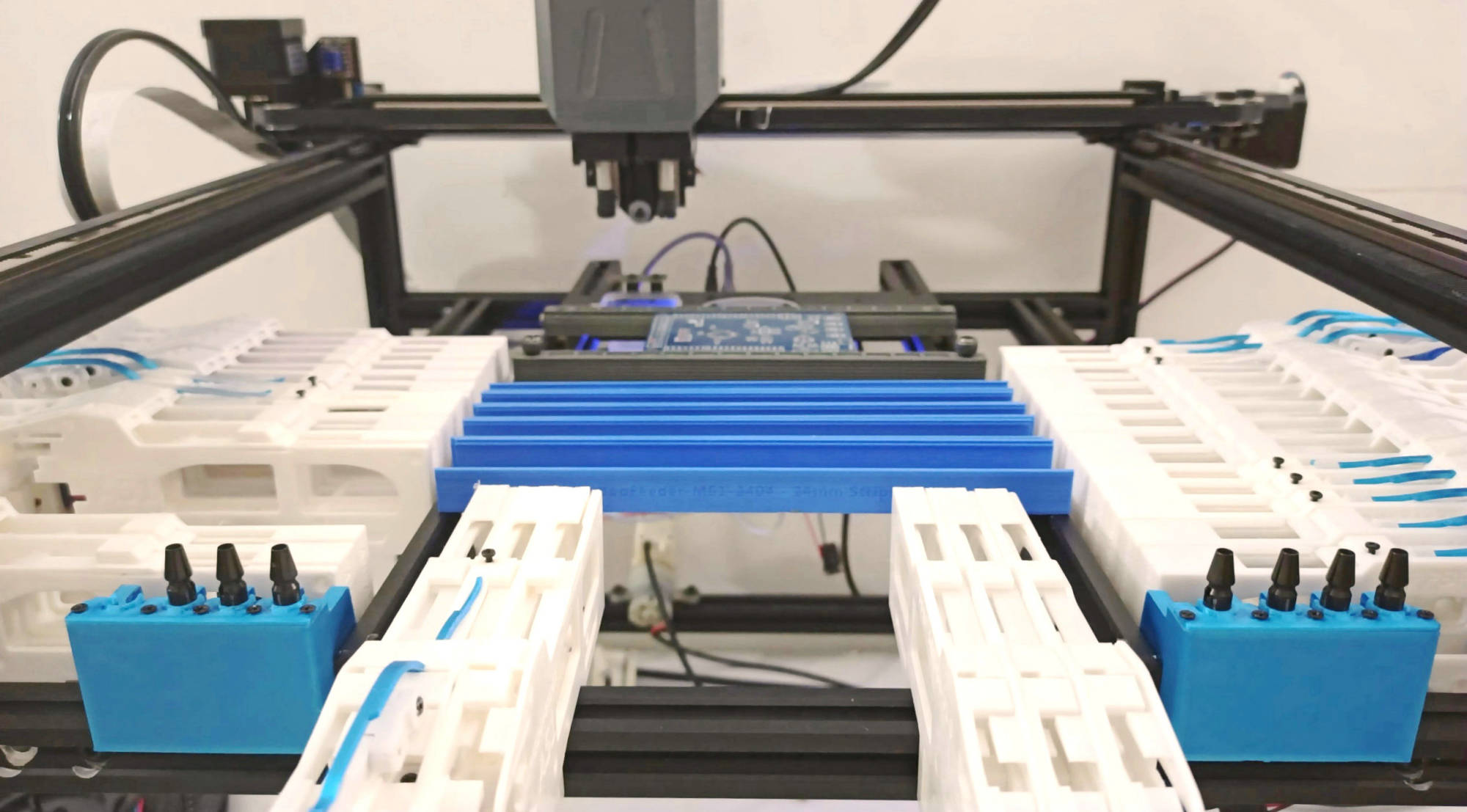

Pandaplacer A1

Open frame desktop pick and place machine designed to work with OpenPnP. Affordable DIY kit, designed for precision and versatility. Supports a wide range of component sizes from the small 0402 components up to large LQFP-176 packages, with a maximum component height of up to 18mm. Equipped with a robust all-metal construction and a compact design, it offers dual-head high precision nozzles, advanced dual-camera vision system and support for up to 65 auto feeders.

Learn more

Pandaplacer A1

BambooFeeder

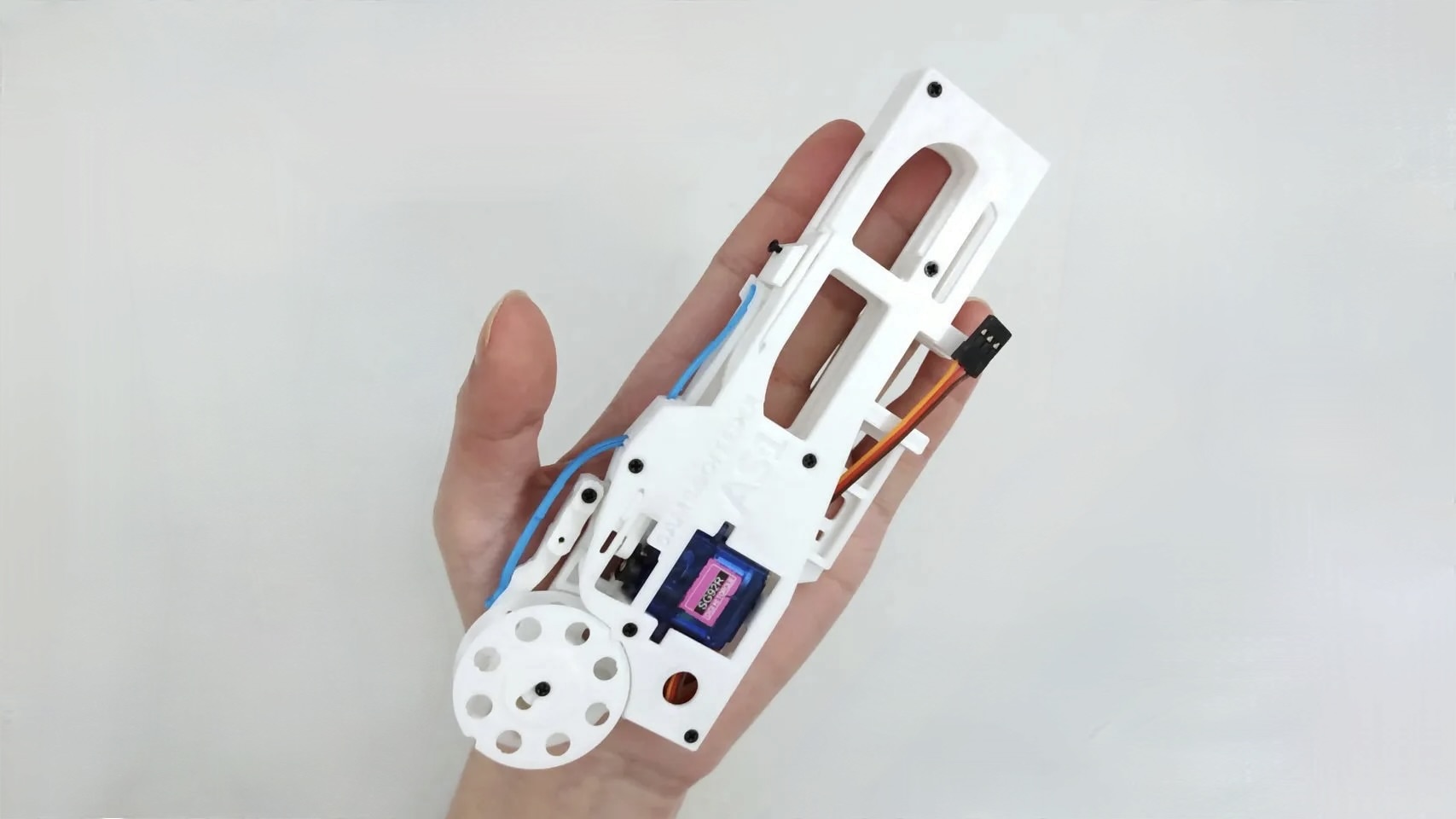

BambooFeeder AS

Cost-effective auto feeder designed specifically for the Pandaplacer machines. It ensures efficient and reliable component delivery, significantly enhancing production speed and accuracy. With its robust construction and seamless integration, the AS1 / AS2 is an excellent addition to streamline your pick and place operations.

Learn more

FAQ

In standard mounting mode, maximum PCB size is about 200mm X 270mm.
By giving up the feeder mounting position on one side(reduce 26 feeder mounting positions), maximum PCB size is about 250mm X 270mm.
In minimal feeder installation mode, maximum PCB size can reach to 300mm X 270mm with 8 8mm feeder mounting positions.

In our testing, the speed with vision is about 700-900 CPH.
There is room for speed optimization and we are constantly looking for improvements.

The motion controller board is a customized board based on STM32F1 with the Marlin firmware.

Please visit our Docs website.

You can order the machine from our online store .
